Product Overview

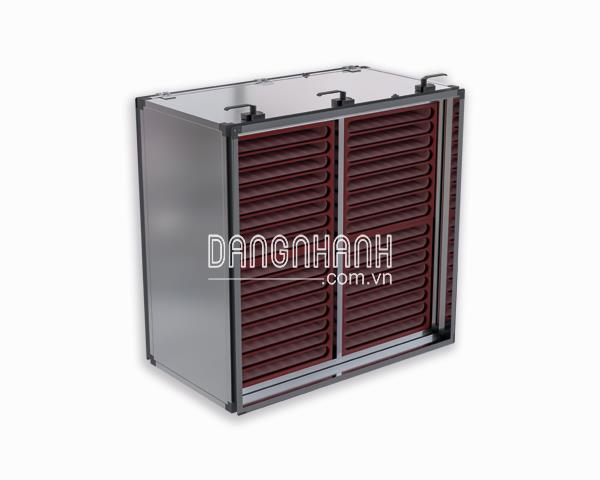

Dust Louvre Housing is a heavy-duty self-cleaning filter that is equipped with an inertial separator for filtration of dry, granular contaminants. Typical applications include:
Pre-filter for air conditioning and ventilating systems in heavy industrial conditions.
Pre-filter in areas with severe atmospheric conditions, such as dust and sand storms.
Air inlet filter in all types of industrial, public, and commercial buildings.
This Housing has one or more rectangular air inlet aperture(s). Behind each, a dust louvre pocket is connected to the housing. A wire mesh screen protects the aperture(s) and louvre(s).
The Dust Louvre Housing is available in nineteen sizes. The primary air capacity of each housing is determined by the pressure drop of each particular system. The recommended pressure drop range is 125 Pa to 300 Pa over the housing. The air capacity range is 540 - 80, 120 m3/h.
