AstroSafe KSS Housing

Product Overview

• Side access for easy filter replacement
• Optional integrated prefilter section
• Optional DIN test groove
• Transition pieces
• Low leaking or air tight valves
• TEE scan to test the filter in situ
• Magnehelic pressure gauges
• Stainless steel, 304 as well as 316
• Support legs for installation on the floor

The AAF AstroSafe-KSS in-line HEPA Housing is an airtight duct housing, designed for in-line installation in air supply, re-circulation or exhaust ducting. Typical applications include for supply and extraction systems in:

• Pharmaceutical production suites
• Pharmaceutical and Biotechnology laboratories
• Animal laboratories
• Hospital and other health care facilities
• Optical industries

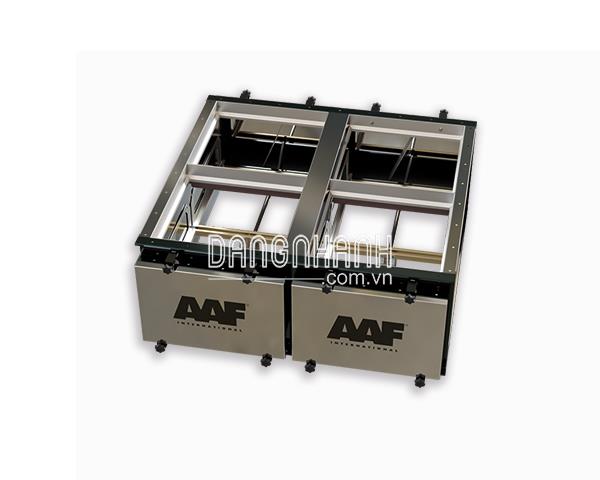

The AstroSafe-KSS in-line HEPA Housing is made of mild steel, which is suitably reinforced and comes with drilled flanges on both sides. Airtight side-access maintenance doors with star-wheel turn-locks enable replacement of the filter elements. The entire housing comes with an epoxy powder coated finish, which is easy to decontaminate and resistant to  disinfectants. The HEPA filter is placed into a frame and sealed in the housing by a stainless steel mechanism. This mechanism is operated with a single lever and is maintenance-free. Options include an integrated prefilter section, duct transition pieces and a support structure.
