Tổng quan về sản phẩm
Giới thiệu Van điện từ DP-12.12-N/ DP-14.14N series
Thông số kỹ thuật của Van điện từ DP-12.12-N/ DP-14.14N series
Model
AC coil

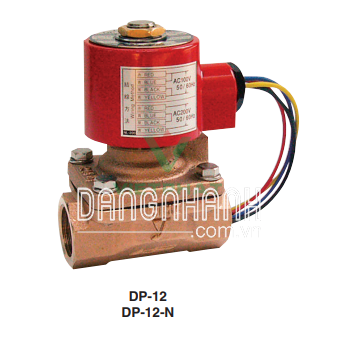

DP-12*12-N

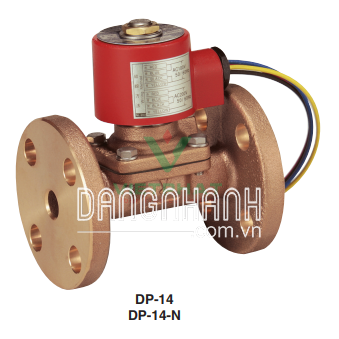

DP-14*14-N
DP-12C
DP-14C
DC coil
DP-12D
DP-14D
DP-12CD
DP-14CD
Application
Air, Cold and hot water, Oil (20 cSt or less)
Working pressure
0-1.0 MPa (unusable under vacuum)
Min. differential pressure
0 MPa (0.1 MPa or more is required for vertical installation)
Valve seat leakage
No leakage at the pressure gauge
Max. temperature
60°C
Operation
Normally closed

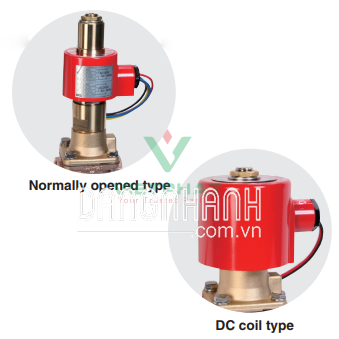

Normally opened
Material
Body
Cast bronze *
Valve
NBR (diaphragm)
Connection
JIS Rc screwed
JIS 10K FF flanged
JIS Rc screwed
JIS 10K FF flanged
