Description
Version:

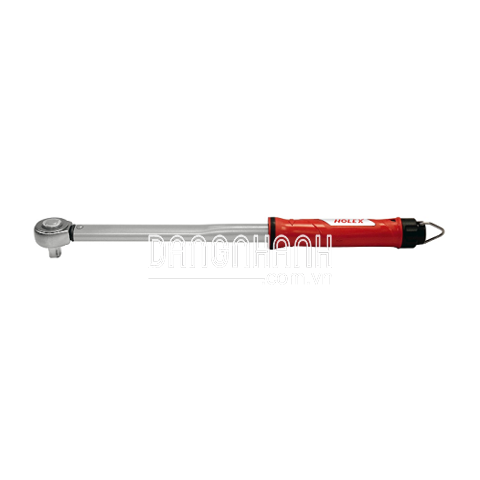

Single-handed torque wrenches without a setting scale. Wrench setting using torque analyser.
Integral ratchet with captive push-through square drive pin for right-hand and left-hand tightening.
Function:
If the set value is reached while using the wrench, the wrench triggers giving a "signal" (audible and perceptible) and is then immediately ready for use again.
Application:
For controlled screw tightening etc. to specified torques in series production.
Standard:
Tested to DIN EN ISO 6789.
Accuracy:
±3% of the set value.
Note:
The guaranteed measuring accuracy of the torque is achieved only once the torque range has been calibrated to DIN EN ISO 6789.
