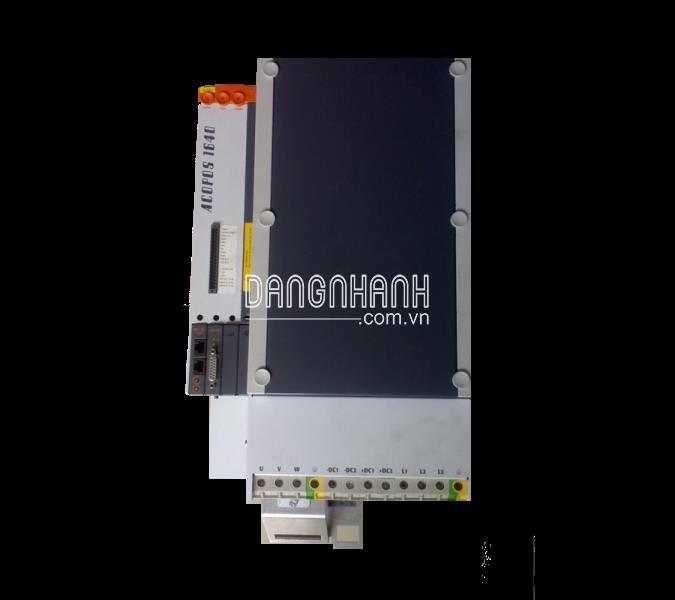

ACOPOS servo drive, 3x 400-480 V, 64 A, 32 kW, line filter, in- tegrated braking resistor, DC bus power supply and electronic secure restart inhibit
8V1640.00-2ACOPOS servo drive, 3x 400-480 V, 64 A, 32 kW, line filter, in- tegrated braking resistor, DC bus power supply and electronic secure restart inhibit
Optional accessories
Braking resistors8B0W0045H000.000-1ACOPOSmulti braking resistor, 450 W, 50 R, IP20, terminals8B0W0045H000.001-1ACOPOSmulti braking resistor, 450 W, 50 R, IP65, terminals8B0W0079H000.000-1ACOPOSmulti braking resistor, 790 W, 33 R, IP20, terminals8B0W0079H000.001-1ACOPOSmulti braking resistor, 790 W, 33 R, IP65, terminals
Plug-in modules8AC110.60-3ACOPOS plug-in module, CAN interface8AC114.60-2ACOPOS plug-in module, POWERLINK V2 interface8AC120.60-1ACOPOS plug-in module, EnDat encoder and sine incremental encoder interface8AC121.60-1ACOPOS plug-in module, HIPERFACE interface8AC122.60-3ACOPOS plug-in module, resolver interface 10 kHz8AC123.60-1ACOPOS plug-in module, incremental encoder and SSI ab- solute encoder interface8AC125.60-1ACOPOS plug-in module, BiSS encoder interface 5 V8AC125.60-2ACOPOS plug-in module, BiSS encoder interface 5 V, baud rate
6.25 Mbit/s8AC125.61-2ACOPOS plug-in module, BiSS encoder interface 12 V, baud rate 6.25 Mbit/s8AC126.60-1ACOPOS plug-in module, EnDat 2.2 encoder interface8AC130.60-1ACOPOS plug-in module, 8 digital I/O configurable in pairs as 24 V input or as output 400/100 mA, 2 digital outputs 2 A, order TB712 terminal block separately8AC131.60-1ACOPOS plug-in module, 2 analog inputs ±10 V, 2 digital I/O points configurable as 24 V input or 45 mA output, order TB712 terminal block separately8AC140.60-3ACOPOS plug-in module, CPU, x86 100 MHz Intel compatible, 32 MB DRAM, 32 kB SRAM, removable application memory: CompactFlash, 1 CAN interface, 1 Ethernet interface 100 Base- T, 1 PROFIBUS DP slave interface, 1 RS232 interface, 3 digital I/O points configurable as 24 VDC input or 500 mA output, 1 analog input ±10 V, order program memory and
