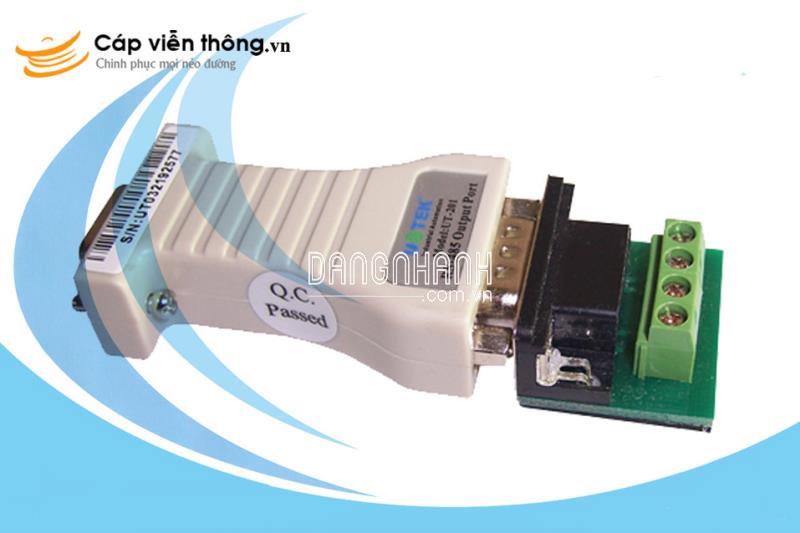

Bộ chuyển đổi RS-232 sang RS-485 UT-201
Mã: UT-201
Giá: Liên Hệ
Hãng sản xuất: UTEK
Feature
1. Exquisite mini-sized with DB9 connector and wiring post connector.
2. Compatible with RS-232 and RS-485 standards of EIA/TIA.
3. Automatic data transceiver without external volume control signal (RTS).
4. Power supply:RS-232 pinout powered, and three-line(TXD, RXD and GND) communication
5. without necessity for initialization of the serial ports to obtain power supply.
6. A maximum connection of 32 pieces of network devices.
7. Communication distance: 1.2 KM.
8. Baud rate: 300BPS-115.2KBPS
9. Transmission media:STP
10. Working mode: asynchronous half-duplex (RS-485).
11. Plug-and-play and universally applicable on all the existing communication software.
