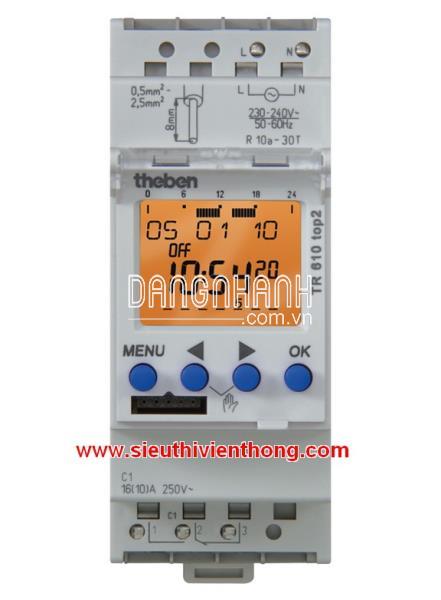

Công tắc hẹn giờ kỹ thuật số THEBEN TR 610 top2 12-24 V UC
- Chương trình hàng ngày và hàng tuần
-Thời gian chuyển đổi ngắn nhất; 1 phút
-56 lần nhớ cho 1 kênh ra (28 lần ON/OFF)
- DuoFix thiết bị đầu cuối
- Giao diện cho thẻ nhớ Obelisk top2 Lập trìnhPC
- PIN dự trữ 10 năm (pin lithium)
- Zero-cross chuyển đổi
- Tích hợp bộ đếm giờ
- Thường trực chuyển đổi ON/OFF
- Backlit hiển thị (có thể được tắt)
- Lắp đặt DIN rail
- Môi trường hoạt động : 30 độ C đến +55 độ C
Features
- Digital time switch with weekly program
- 1 channel
- DuoFix spring terminals
- For 2 conductors each
- Wire or strand (with or without wire end sleeve)
- Wire diameter: 0.5 - 2.5 mm
- Button for releasing plug-in connection
- Text-oriented user guidance in display
- Preset date and time
- fully operable without mains connection
- 56 memory locations
- Interface for OBELISK top2 memory card (PC programming)
- Insertable switching program
- Copying programs
- Storing programs
- 10 year power reserve (lithium battery)
- Zero-cross switching for relay-saving switching and high lamp loads (not with 24 V devices)
- ON-OFF switching times
- Switching preselection
- Permanent switching ON/OFF
- Integrated operating hour counter
- Reset option
- Service function for monitoring maintenance intervals
- Holiday program
- Display back light (can be turned off)
- Permanent switching ON/OFF
- PIN coding
- Automatic summer/winter time changeover
- can be deactivated
- Date rule options are already stored for Europe, the USA and other countries
- own date rule options or changeover around set dates are available
- Hãng sản xuất THEBEN của Đức.
-Bảo hành: 12 tháng.
