AAF PRODUCT

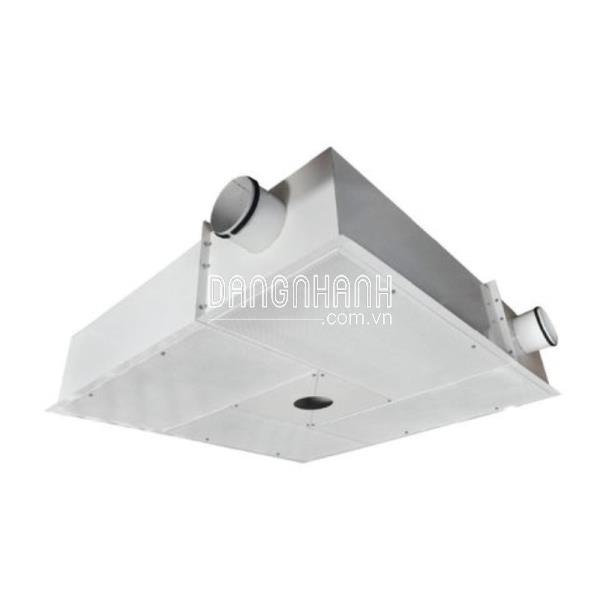

CRU-II 1800x2400x400mm
Cellside: GI Powder Coating RAL9016
Drawing Number: To be advise
Remark:
- Housing size not include 40mm flange
- c/w lamp centre module only (lamp not
provided)
- accessories <(>&<)> pallet is included
Air Flow: 5613cmh with 0.45m/s
Size in MM (HxWxD)
Price Validity: 18th May 2022
c/w Ast II, H14 (Required 4ea per housing)
Part Number: M575-233-298
Filter Size (HxWxD): AST-II 29E99E2T3J3
550x1150x69mm
c/w Ast II, H14 (Required 2ea per housing)
Part Number: M575-233-2878
Filter Size (HxWxD): AST-II 29E99E2T3J3
550x850x69mm
Efficiency: H14
Frame: Aluminium Extrusion
Gasket: Auto Gasket on Both Side
Faceguard: Both Side
