Lo-Limit and Hi-Limit Control, Aluminum or Brass Case Available

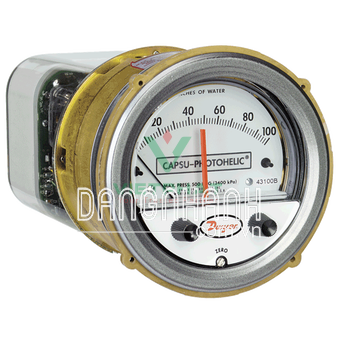

Capsu-Photohelic® Pressure Switch Gage is versatile and combined with a precise pressure gage employing the Magnehelic gage design. Ideal for control of pumps.
Features
Gage capsule permits high-pressure usage with small differentials
Zero and range adjustments outside of gage means no disassembly in normal service
Time-proven, simple, frictionless movement that permits full scale readings as low as 0.5 in w.c.
Photo-electronic relays provide fast-acting switching with variable deadband control for chatter-free operation.
Product Applications
Pump control
Pumping systems
Waste water
Compatible liquid or gas applications
Specifications
GAGE SPECIFICATIONS
Service: Compatible gases and liquids. Brass case option required for water based liquids.
Wetted Materials: Consult factory.
Accuracy: ±3% of FS at 70°F (21.1°C). ±4% on 43215, 43220 and 43500.
Pressure Limits: -20 Hg to 500 psig (-0.677 to 34.5 bar).
Temperature Limits: 20 to 120°F (-6.67 to 48.9°C). Low temperature option available.
Process Connections: 1/4" female NPT.
Size: 4" (101.6 mm) dial face, 5" (127 mm) OD x 9-3/16" (233.36 mm).
Weight: 5 lb. 8 oz (2.49 kg). Brass 11 lb. 2 oz (5.05 kg).
SWITCH SPECIFICATIONS
Switch Type: Each setpoint has 2 form C relays (DPDT).
Repeatability: ±1% of FS.
Electrical Rating: 10 A @ 120 VAC, 6 A @ 240 VAC, 60 Hz res. 10 A @ 28 VDC.
Electrical Connections: Screw terminals.
Power Requirements: 120 VAC, 50/60 Hz; 240 VAC & 24 VAC power optional.
Mounting Orientation: Diaphragm in vertical position. Consult factory for other position orientations.
Set Point Adjustment: Adjustable knobs on face.
