Measures Pressure, Flow and Velocity; ±0.5% Accuracy
Handheld Digital Manometer are available with pressure, flow, and velocity measurements. Applications include duct static pressure and air flow monitoring.
Features
Calculates and displays air velocity and volumetric air flow
Rugged aluminum case protects instrument from damage during transport/use
9 selectable English and metric engineering units
Large, easy to read display with backlight for use in dark areas
Stores up to 40 readings with minimum, maximum and average statistics
Product Applications
Air flow monitoring
Duct static pressure
Specifications
Service: Air and compatible gases.
Wetted Materials: Consult factory.
Accuracy: ±0.5% FS, 60 to 78°F (15.6 to 25.6°C); ±1.5% FS from 32 to 60°F and 78 to 104°F (0 to 15.6°C and 25.6 to 40.0°C).
Pressure Hysteresis: ±0.1% of full scale.
Pressure Limits: See chart on catalog page.
Temperature Limits: 0 to 140°F (-17.8 to 60°C).
Compensated Temperature Limits: 32 to 104°F (0 to 40°C).
Storage Temperature Limits: -4 to 176°F (-20 to 80°C).
Display: 0.42" (10.6 mm) 4 digit LCD.
Resolution: See chart on catalog page.
Units of Pressure: in w.c., ft. w.c., in Hg, psi, oz/in², mm w.c., cm w.c., mm Hg, mbar, Pa, kPa, hPa.
Units of Velocity: fpm, fps, mph, m/h, m/s, k/h, knot.
Units of Flow: cfm, m3/h, m3/s.
Power Requirements: 9 V Alkaline battery, installed non-functional, user replaceable.
Weight: 10.2 oz (289 g).

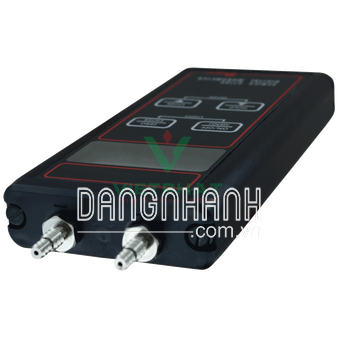

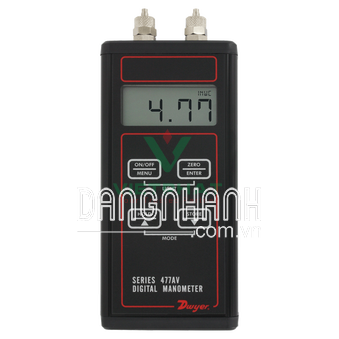

Process Connections: Two barbed connections for use with 1/8" (3.18 mm) or 3/16" (4.76 mm) ID tubing. Two compression fittings for use with 1/8" (3.18 mm) ID x 1/4" (6.35 mm) OD tubing for 477AV-7 and 477AV-8 only.
Agency Approvals: CE.
