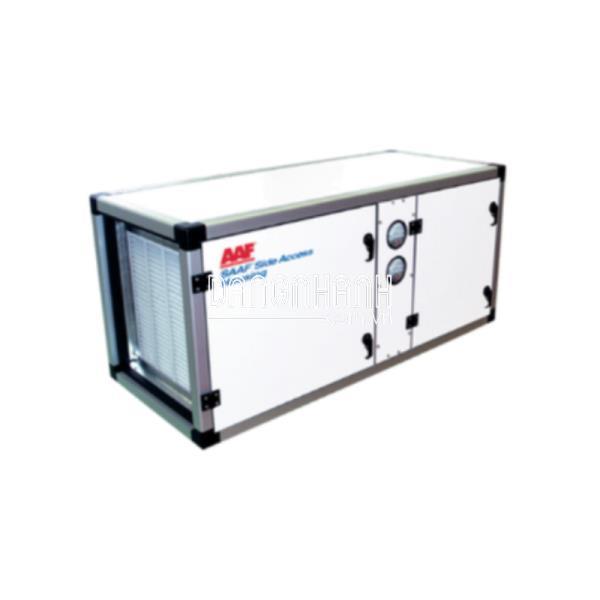

SAH-304-2P-MD-MD-2F-F
Double Wall SS304, 2.0/2.0mm
SS304 Base frame
Include rooftop for outdoor installation
purposes (SS304 Roof)
Include Filter (initial loading only)
Include accessories as below:
- Lifting Lug and anchor bolt fixing on base
frame (Eye bolt)
- Access door on one side (Hinged and latched
type)
- Include 2ea Pressure Differential Indicator
Switch for pre and final
filter
- Counter flange for inlet and outlet
- Isolation switch for fan
Airflow: 9702 CMH
Include blower with spec below
- Electric power supply 400V/3 phase/50 Hz
- Vibration isolation with accessory
- Fan static pressure (700 Pa)
2P - 2" AmAir 300E, G4
MD - MD Cassette, SAAFCarb MA
MD - MD Cassette, SAAFOxidant
2F - 2" AmAir 300E, G4
F- Fan
