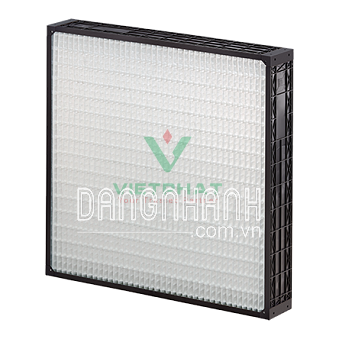

VariCel® 2+ HC (High Capacity) is the logical upgrade from standard 4-inch pleated filters, when higher efficiency and longer life are required.
Product Overview
AAF Flanders’ exclusive Impress® pleating technology for maximized energy efficiency
Combines high mechanical strengh and low resistance for savings on overall operating costs
Excellent performance under difficult conditions, including variable air volume, turbulent airlow, and high humidity
Impress® technology maximizes media utilization for increased Dust Holding Capacity (DHC) and longer service life
High capacity media pack provides lowest possible total cost of ownership with lower resistance and longer filter life
Lightweight and easy to handle and install
Slim-line design significantly reduces shipping, storage, and disposal cost
Models rated MERV 13 and higher meet LEED® Project Certification efficiency requirements
Typical Applications
Commercial Buildings
Data Centers
Hospitality
Museums & Historic Storage
Schools and Universities
Specification
EN779: M6 - F9
ASHRAE 52.2: MERV 11 - 15
Filter Depth (mm): 95
Media Type: Synthetic
Frame Material: Plastic
Separator Style: Embossed
Special Size Available: Yes
Antimicrobial Available: No
Header Type: None, Single Header
Recomm. Final Resistance: 375 Pa
Max Operating Temperature: 66°C
Air Filtration Certificate: UL 900, ULC-S111
