Máy Hàn Metcal MX 5211 / Soldering Station Metcal MX 5211
MX-5211
New Dual Port Simultaneous Soldering and Rework System highly effective for soldering applications including: lead-free, high mass components or boards, thermally sensitive components requiring low operating temperature, high volume production soldering and touch-up soldering operations. In addition, the MX-5211 can be used for conduction rework of SMDs when using SMTC Series soldering cartridges simultaneously.
Features and Benefits:
Can be operated with two hand-pieces dynamically sharing the 80 watts output power based on demand adding even more application flexibility and speed.
Configured with two Metcal Advanced Soldering and Rework Hand-pieces.
Microprocessor controlled power supply providing more power for challenges such as high mass components, multi-layered boards and lead-free solders.
Improved ergonomics with lightweight hand-pieces.
Greater process control with SmartHeat® Technology.
ESD safe with incoming AC ground monitoring circuitry.
Built-in power indication meter with digital display and bar graph that dynamically provides the operator with feedback on the status of the soldering operation.
Metcal TipSaver™ Workstand improves tip life with its “Auto-Sleep” function.

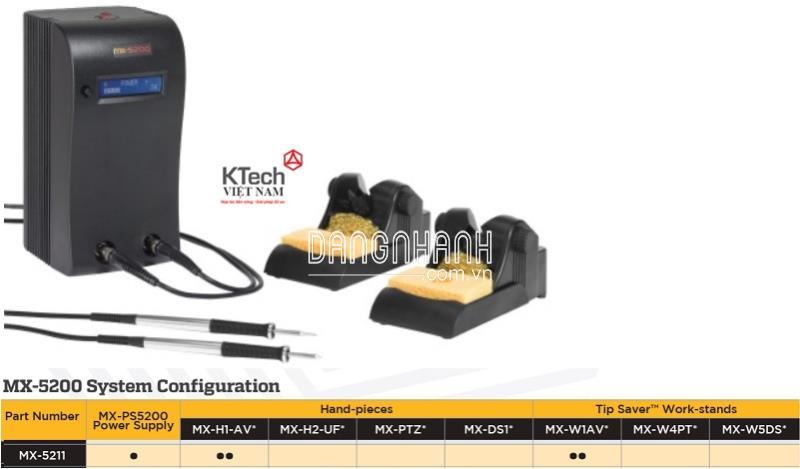

Product Comprises of:
MX-PS5200 : Power supply, 100 to 240 VAC input, dual switch port with LCD Display
MX-H1-AV : Two Metcal Advanced™ Hand-pieces, Soldering and Rework with two cartridge removal pads
MX-W1AV : Two Workstands for Metcal Advanced™ Hand-piece, Soldering and Rework with two sponges and two brass pads
NOTE: No tip/cartridge included
Tips / Cartridges Series compatible with this system:
STTC Soldering Cartridges
SMTC Rework Cartridges
