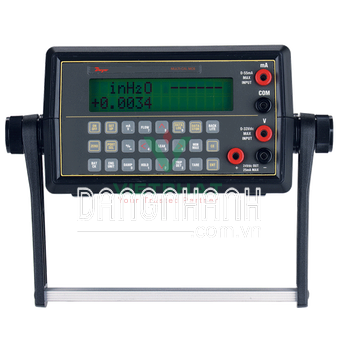

Model MC6

Thông số kỹ thuật:

• Service: Clean, dry, nonconductive, noncorrosive gases.
• Accuracy: Differential Pressure Modules: ±0.06% FS, Gage Pressure Modules: ±0.05% FS, Voltage Input: ±0.025% FS @ 1/10 VDC, ±0.10% FS @ 0/30 VDC, Current Input: ±0.03% FS @ 1/20 mA, ±0.05% FS @ 0/50 mA.
• Sensitivity: ±0.002% of span with dampening 1 part in 50,000 (max.).
• Repeatability: Ranges ≤0/2 psi: ±0.05% of span, Ranges ≥0/5 psid: ±0.02% of span.
• Output: RS232 serial interface, 9-pin.
• Alarm Output: SPST form C 110 VDC, 120 VDC (max.), 1 A (mas.), 30 W, 62.5 VA (resistive).
• Display: Alphanumeric LCD, 0.37" (9.5 mm) height per line, 2 lines, 16 characters/line.
• Display Update: 100 ms.
• Ambient Operation Temperature: 32 to 120°F (0 to 49°C).
• Storage Temperature: -4 to 158°F (-20 to 70°C).
• Process Connection: 1/8" female NPT.
• Electrical Connections: Standard banana jacks.
• Power Supply: 110 VAC/60 Hz adapter, 500 mA.
• Memory Backup Requirements:: VL1220 or BR1225 Lithium Metal battery, installed functional, user replaceable.
• Engineering Units: In H2O, psi, in Hg, kPa, mbar, bar, cm H2O, mm Hg, ft SW, MPa, mm H2O, kg cm² and user-defined.
• Overpressure: Differential Pressure Modules: 50 psi positive direction, 15 psi negative direction, Gage Pressure Modules: 2x range (0/5 psi to 0/1000 psi).
• Temperature Compensation: 20 to 120°F (-7 to 49°C).
• Temperature Error: Maximum of ±0.004% of span per °F over compensated range for zero and span.
• Temperature Effect Electrical Measurement: ±0.001% of span per °F over compensated range.
• Dampening: (Measurement averaging) programmable from 0 to 16 consecutive readings.
• Baud Rate: 300, 1200, 2400, or 9600, selectable.
• Computer Requirements: IBM compatible 386 or above and Windows® 3.1 or later with 2MB RAM and 2MB hard drive disk space, one serial port.
• Housing Material: ABS plastic.
• Weight: Calibrator: 3 lb (1.4 kg); Pressure Module: 0.5 lb (0.3 kg).
