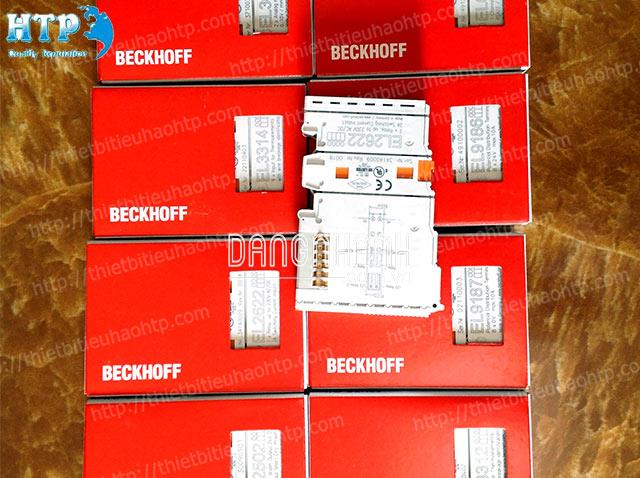

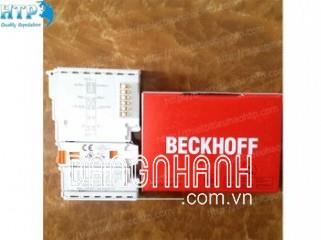

Module mở rộng EL2622 Beckhoff
Model: EL 3312, EL 2622, EL 1004, EL 2004, EL 3062, EL 4002
EL 2502, EL 6021, EL 3314, EL 9186, EL 1008, EL 9187
Number of outputs: 2 x make contacts
Rated load voltage: 230 V AC/30 V DC
Load type: ohmic, inductive, lamp load
Ohmic switching current: 5 A AC/DC per channel
Inductive switching current: 2 A AC/DC per channel
Minimum permitted load: 10 mA at 5 V DC
Lamp test, electronic ballast: 4 x 58 V DC
Current consumption E-bus: typ. 170 mA
Operating cycles mech. (min.): 2 x (10)7
Operating cycles electr. (min.): 1 x (10)5
