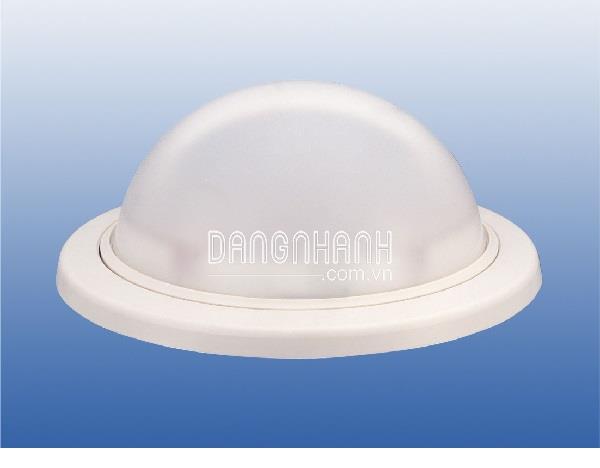

Passive Infrared Sensor TAKEX PA-6805E
- Compact design
+ Our high technology provides the world's smallest dome shaped infrared sensor.
+ Super slim & compact design-120mm in diameter and 47mm in height.30% smaller than PA-6700 series.
- Easy installation
+ Easy separation of the sensor unit and the base unit eases installation and maintenance.
+ The sensor unit can be snapped into and out of the base unit. One touch operation eases installation in high places.
- Silent relay
+ Photo-mos FET switch relay adopted at alarm output. Completely noiseless by eliminating the movable part which is inside of the relay.
- High stability
+ Signal processing by the original CPU.
+ Excellent R.F.I and noise immunity.
+ Good protection against insect intrusion.
- Sensitivity changeover
+ Sensitivity is adjustable by 4 steps : 60%, 80%, 100％, 120％.
- Pulse count changeover
+ Mode selector allows setting for 1, 2, 3 or 4 triggers to initiate an alarm output to suit its application.
- Alarm contact changeover: Mode selector allows N/O or N/C contact to be selected.
- Remote led control: Alarm LED can be disabled by external contact switch.
- Auto alarm memory: Alarm memory can be auto-reset or disabled by mode selector.
- Other features
+ Distinguishable operation LED.
+ Alarm LED : Red, Memory LED: Yellow.
+ Wall mounted with optional attachment BCW-401.
- Xuất xứ: Nhật Bản.
- Bảo hành: 18 tháng.
